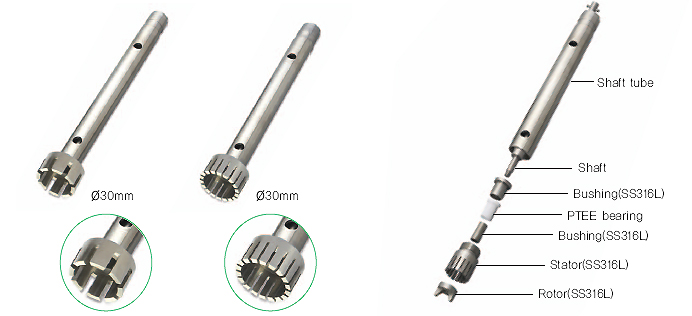

 Appliction examples (Stator/Rotor) | | |
| Stator |
|
| | Rotor |
|
|
|
|
|
|
| | Model | T30SC | T30CC | T20MC | T30SF | T30CF | T30MF | T30EF | | Fuction | Standard
rotor | Cutter
rotor | Mixing
rotor | Standard
rotor | Cutter
rotor | Mixing
rotor | Emulsifying
rotor | Material in contact
with product | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | Stainless steel
316L
PTFE | | Working range(ml)(H2O) | 100~3000ml | 100~3000ml | 100~3000ml | 100~3000ml | 100~3000ml | 100~3000ml | 100~3000ml | | Stator diameter | Ø30mm | Ø30mm | Ø30mm | Ø30mm | Ø30mm | Ø30mm | Ø30mm | | Rotor diameter | Ø23mm | Ø23mm | Ø23mm | Ø23mm | Ø23mm | Ø23mm | Ø23mm | | Circumferential speed | 36m/s | 36m/s | 36m/s | 36m/s | 36m/s | 36m/s | 36m/s | | Tool length | 220mm | 220mm | 220mm | 220mm | 220mm | 220mm | 220mm | Min/Mix. Immersion
depth | 40/175mm | 40/175mm | 40/175mm | 40/175mm | 40/175mm | 40/175mm | 40/175mm | Ultimate
fineness | Suspension | 20-50㎛ | 20-50㎛ | 20-50㎛ | 20-50㎛ | 20-50㎛ | 20-50㎛ | 20-50㎛ | | emulsion | 1-10㎛ | 1-10㎛ | 1-10㎛ | 1-10㎛ | 1-10㎛ | 1-10㎛ | 1-10㎛ | | Sterilization methods | All methods | All methods | All methods | All methods | All methods | All methods | All methods | | | |
|
|
|
|
|
